Home » Products » Veneer Clipper Machine » Pneumatic Veneer Clipper

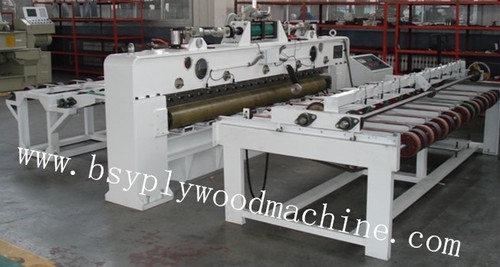

Pneumatic Veneer Clipper

Pneumatic Veneer Clipper
Pneumatic Veneer Clipper
Product Code : PVC
Brand Name : BSY
Product Description

Empowered with huge technical experience and international market knowledge, we have positioned ourselves as a unmatched manufacturer, exporter and supplier of wide gamut of Pneumatic Veneer Clipper to our highly valuable clients. The offered machine is manufactured by our diligent professionals by making use of supreme grade components and latest techniques as per the defined industry trends. The provided machine is widely used to shearing the veneer in veneer peeling line. Additionally, the offered Pneumatic Veneer Clipper is rigorously tested on different measure to meet the set benchmark of quality.

Features:

  • Rugged design

  • High operational fluency

  • Unmatched performance

  • Low maintenance

Range of application:

This machine mainly shear the veneer. It is used in veneer peeling line and to clip the long veneer.

It has four parts: veneer feeding system, shearing part, veneer out system and electric case.

Veneer length is controlled by input length on the screen.

Machine's parameter:

Model

BJ1326A

BJ1320

Max.working width(mm)

2650

2050

Open distance (mm)

55

55

Max.number of shearing(t/min)

70

70

Feed speed (m/min)

0.6-6 6-60

0.6-6 6-60

Feed Motor (kw)

4

3

Overall dimensions (mm)

3710×1580×3020

3110×1580×3020

Weigth(kg)

2800

2600
