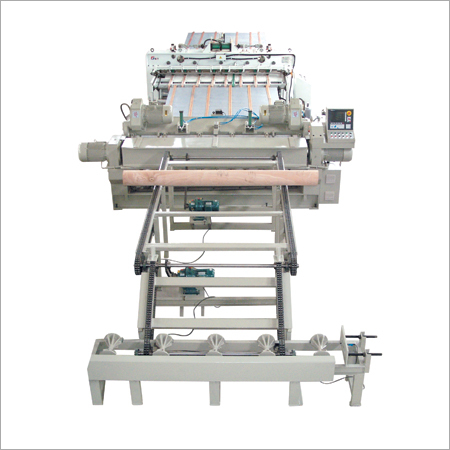

Spindleless Log Peeling Veneer Production Line

Spindleless Log Peeling Veneer Production Line
Spindleless Log Peeling Veneer Production Line
Product Code : VPM
Brand Name : SHANDONG BAISHENGYUAN GROUP CO. LTD.
Product Description

Capitalizing on our advanced manufacturing unit, we have become a leading manufacturer, exporter and supplier of a wide range of Spindleless Log Peeling Veneer Production Line which is rugged in design. This line is used in veneer production for the specific veneer peeling application. The provided production line is efficiently manufactured by making use of optimum grade quality tested components at our well-advanced manufacturing unit under the supervision of our dexterous professionals. In addition, the offered Spindleless Log Peeling Veneer Production Line is available in a range of technical specifications as per the application needs of clients.

Features:

  • Robust construction
  • High operational fluency
  • Impeccable performance
  • Negligible maintenance
Product Details:
Place of Origin: China
Brand Name: BSY
Certification: ISO9001 and CE
Model Number: BQ1326/13, BQ1326/11, BQ1326/5, BQ1315/5A, BQ1315/11
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: 0
Packaging Details: load in container
Delivery Time: 20 days
Payment Terms: T/T, L/C
Supply Ability: 5 unit


Mechanical Single Spindle Veneer Peeling Machine

Specification:

MODEL BQ1326/5 BQ1326/11 BQ1326/13 BQ1315/5A BA1315/11
Max.cutting diameter (mm) Φ 125-500 Φ 135-1100 Φ 135-1300 Φ 120-500 Φ 135-1100
Max.cutting length (mm) 2100-2700 1500-2700 1500-2700 900-1450 900-1450
Thickness range of veneer (mm) 0.3-3.25 0.3-3.25 0.3-3.25 0.8-3.0 0.3-3.25
Chuck diameter (mm) Φ 100 Φ 130 Φ 130 Φ 100 Φ 130
Max.rotating speed of spindle (rpm) 43-131 16-96 16-96 13-130 16-96
Quick forward and backward speed of cutting machine (m/min) 1.37 1.32 1.32 1.5 1.32
Main motor power (kw) 55 55 55 22 55
Rapid feed motor power (kw) 3 3 3 1.1 1.32
Nose bar lifting motor power(kw)   1.5 1.5   1.5
Clamping motor power (kw) 3 4 4 3 4
Knife grinding angle 18°-20 ° 18°-20 ° 18°-20 ° 18°-20 ° 18°-20 °
Overall dimensions (mm) 6990×2120 ×1325 8340×2290 ×1945 8340×2290 ×1945 4760x2099 x1251 6980x2165 x1945
Weight (kg)  15000 17000 18000 4500 16000

Veneer Peeling Lathe:

Specification:

MODEL BQ1326/5 BQ1326/11 BQ1326/13 BQ1315/5A BA1315/11
Max.cutting diameter (mm) Φ 125-500 Φ 135-1100 Φ 135-1300 Φ 120-500 Φ 135-1100
Max.cutting length (mm) 2100-2700 1500-2700 1500-2700 900-1450 900-1450
Thickness range of veneer (mm) 0.3-3.25 0.3-3.25 0.3-3.25 0.8-3.0 0.3-3.25
Chuck diameter (mm) Φ 100 Φ 130 Φ 130 Φ 100 Φ 130
Max.rotating speed of spindle (rpm) 43-131 16-96 16-96 13-130 16-96
Quick forward and backward speed of cutting machine (m/min) 1.37 1.32 1.32 1.5 1.32
Main motor power (kw) 55 55 55 22 55
Rapid feed motor power (kw) 3 3 3 1.1 1.32
Nose bar lifting motor power(kw)   1.5 1.5   1.5
Clamping motor power (kw) 3 4 4 3 4
Knife grinding angle 18°-20 ° 18°-20 ° 18°-20 ° 18°-20 ° 18°-20 °
Overall dimensions (mm) 6990×2120 ×1325 8340×2290 ×1945 8340×2290 ×1945 4760x2099 x1251 6980x2165 x1945
Weight (kg)  15000 17000 18000 4500 16000
